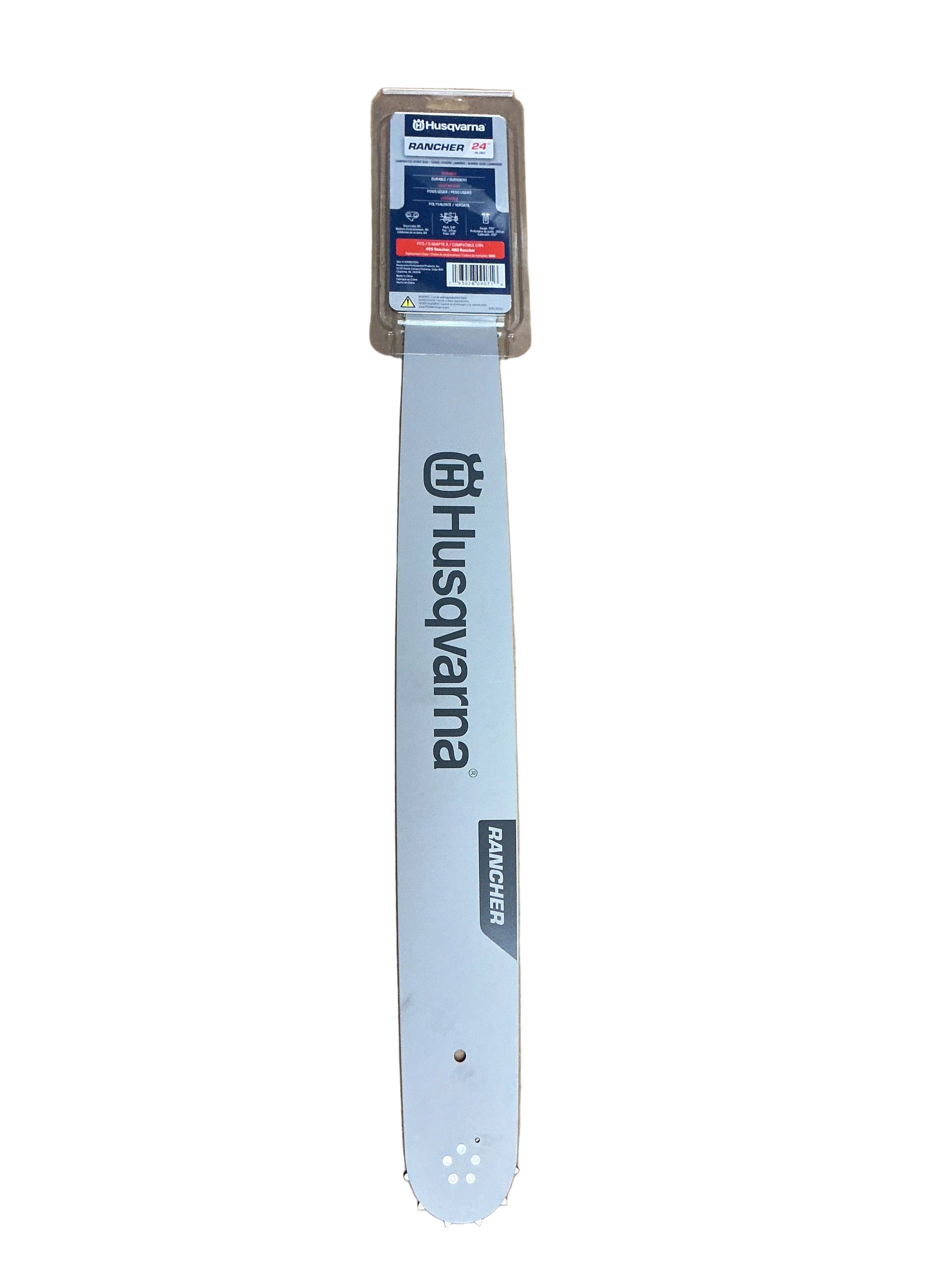

Husqvarna OEM 24" Guide Bar 599807001 | 3/8" .050 84DL Small Mount | New

Husqvarna 24" Rancher X-Force Laminate Guide Bar - Part # 599807001 | New

Genuine Husqvarna 24 inch Rancher (X-Force) laminated guide bar, part number 599807001, in 3/8 in pitch, .050 in gauge, 84 drive links on the Husqvarna small mount pattern. This is the factory 24 in bar option for the 455, 455 Rancher and 460 Rancher, built with a sprocket nose and a corrosion resistant coating.

Specifications

• Part #: 599807001
• Also Known As: 599 80 70-01, Rancher (X-Force) Laminate 3/8 in pitch (XFR)
• Brand: Husqvarna
• Product Type: Chainsaw guide bar
• Bar Length: 24 in (60 cm)
• Pitch: 3/8 in
• Gauge: .050 in (1.3 mm)
• Drive Links: 84
• Mount Pattern: Husqvarna small mount (HSM)
• Nose Type: Sprocket nose
• Bar Type: Laminated
• Recommended File Size: 7/32 in (5.5 mm) round file for 3/8 in pitch chain
• Condition: New

Key Features

• Laminated Construction Three layers bonded together give a bar that is lighter than a comparable solid bar while staying stiff enough for full length bucking cuts.
• Low Wear Nose Profile The X-Force nose profile is shaped to reduce wear at the tip, which is where a bar normally fails first.
• Corrosion Resistant Coating Factory coating helps the bar survive sap, wet wood and off season storage.
• Sealed Bearing Support Shields Shielded nose bearing with no grease hole, so there is no tip greasing step in your maintenance routine.
• 84 Drive Link Chain Order chain as 3/8 in pitch, .050 in gauge, 84 drive links. Drive link count and gauge are what decide chain fitment, not the saw model name.

Compatibility

• Husqvarna 455
• Husqvarna 455 Rancher
• Husqvarna 460 Rancher

The model list above is the fitment Husqvarna publishes for this bar. Please still confirm 599807001 against the parts diagram for your specific model number and serial number before ordering, since maximum bar length and mount pattern can change across production runs.

Why Buy OEM?

On a 24 in bar the tolerances matter more than on a short one, because any rail error is amplified over two feet of cutting length. A factory bar has rails hardened and spaced to Husqvarna spec, an oil port positioned to feed the chain along the whole rail, and a mount slot cut to the exact small mount pattern. That combination is what keeps a long bar cutting straight instead of drifting through the cut.

Why Buy From Us

• ✔ Genuine Husqvarna OEM part number 599807001
• ✔ 24 in laminated bar, 3/8 in pitch, .050 in gauge, 84 drive links
• ✔ Husqvarna small mount with sprocket nose, both confirmed from Husqvarna published data
• ✔ Fitment list taken from the manufacturer, not guessed from lookalike saws
• ✔ Brand new and never mounted, sold as a single bar
• ✔ Sold and shipped by the SWI Outlet Store
• ✔ Fast Shipping - Ships Quickly from the USA

Keywords

599807001, Husqvarna 599807001, 24 inch chainsaw bar, 3/8 .050 84DL bar, Husqvarna 460 Rancher bar, 455 Rancher 24 inch bar, X-Force laminate bar, small mount guide bar, laminated chainsaw bar, 84 drive link bar, Husqvarna guide bar 24"

Please verify compatibility before purchasing. Confirm the bar length, pitch, gauge, drive link count and mount pattern against the parts diagram for your specific model number and serial number before ordering. Chain is not included.
